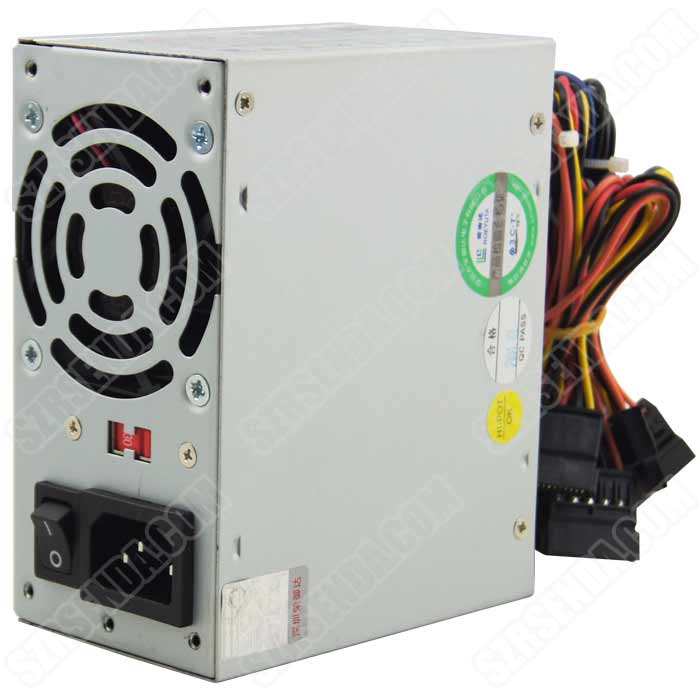

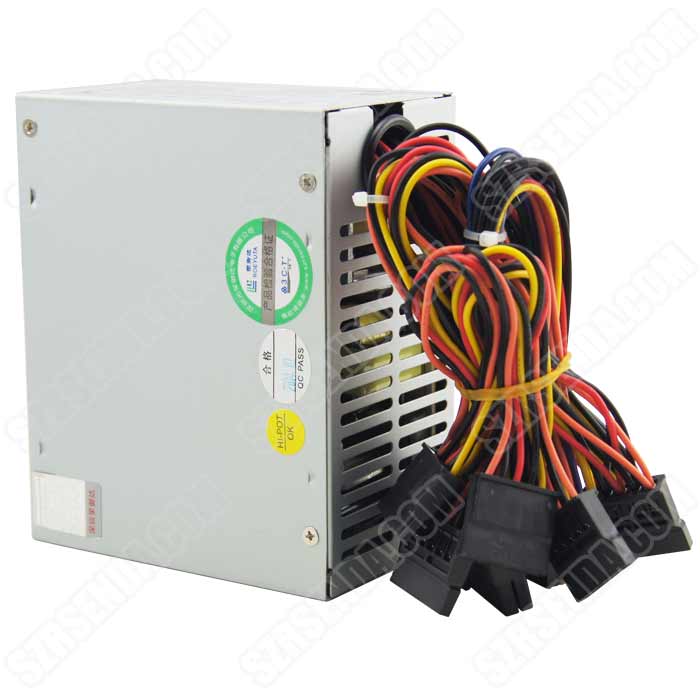

NVR-335B/U

Hi, how can I help you?Chat Now!

  • Model Number：   NVR-335B/U
  • Rated Power：   230W
  • Application：  Desktop, POS machine,All-in-one machine,Security Equipment, etc.
  • Fan Type：  6cm
  • Power Factor：  Passive PFC
  • Input Voltage：  115V/230VAC
  • High efficiency：  75%
  • Dimention：  125x100x63.5mm
  • Packaging Details：  10pcs/ctn
  • Carton Dimention：  420x370x145mm

10 Other Products in the same category

Product Features

*Comply with SFX atx12V Ver 3.2, Rated output :230W(335W Max)
*Support dual core cpu technology
*high efficiency
*high quality ,low noise and low ripple
*6cm fan for good cooling
*output over voltage protection
*short circuit protection on all output
*Life Cycle:≥80k hours
* Connectors: 20Pin for M/B,SATA*8,


Product Details

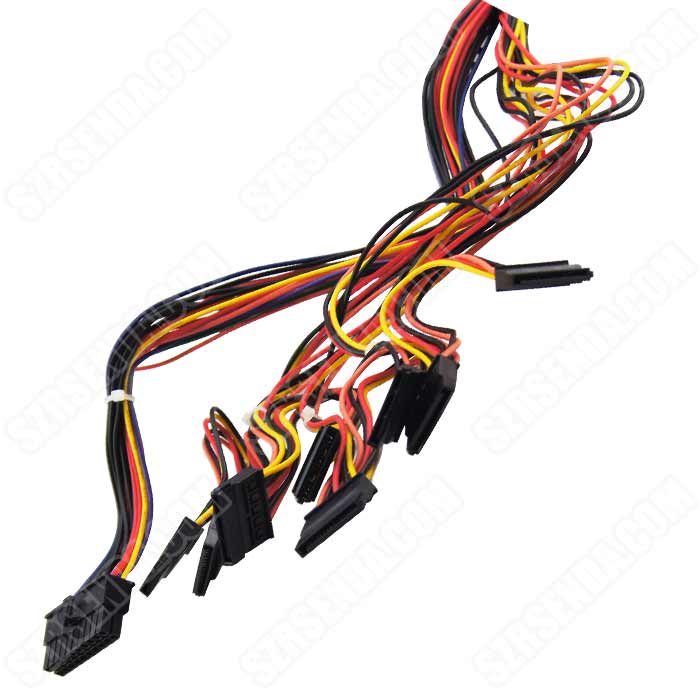

Connector
    • Motherboard cable (20+4-Pin) x 1
    • CPU power Cable (works as either 4 or 8-Pin) x 1
    • SATA cable x 8

    • Motherboard Cable

      20+4-Pin*1

    • CPU power Cable

      4-Pin*1

    • HDD power Cable

      SATA*4

    • HDD power Cable

      SATA*4

Parameters
  • AC Input: 115/220V，5A/3A，47-63Hz
    DC Output:
    • +3.3V(Orange):
    • 14A
    • +5V(Red):
    • 23A
    • +12V1(Yellow):
    • 14A
    • -12V(Blue):
    • 0.5A
    • +5VSB(Purple):
    • 2A
    • -5V(White):
    • -A
    Output power: Max Power：250W，Rated Power：200W
Parameters
    • PFC type：Passive
    • Protection function： OVP， OPP， SCP
    • Cooling system: SPEED: 3500RMP(+/-10%)
      TEMP.AUTO ONTROL: 1800rpm at 41.7℃~3500rpm at 60.5℃
      6CM Fan
      Noise: 22dB at 3200rpm
    • P.G signal: 100-500ms
    • Keep time: 17ms(min)
    • Conversion efficiency：75%
    • MTBF：100000 hours
    • Working temperature：0-50℃
Accessories
    • Packing list：
      Power Supply x1
      Power line x1

Dimensions
  • NVR-335B/U
