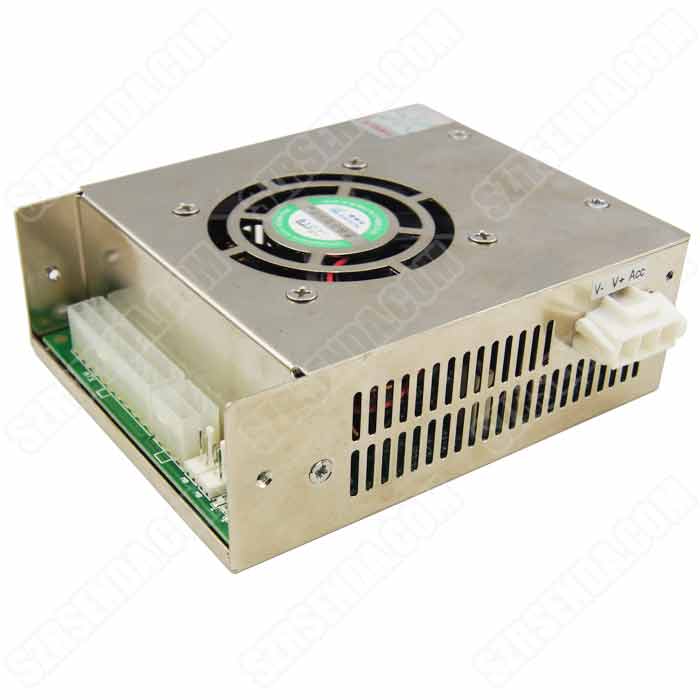

RYT-250K
-
Model Number： RYT-250K -
Rated Power： 250W -
Application： Fiscal machine, Industrial PC, All-in one machine ,etc. -
Fan Type： 8cm -
Power Type： Desktop / industrial computer// the on-board computer -
Input Voltage： 6-36VDC -
High efficiency： 94% -
Dimention： 125x100x42mm -
Packaging Details： 10pcs/ctn -
Carton Dimention： -
10 Other Products in the same category
Product Features
* Rated output power: 250W (250W Max)
* High efficiency & thin Size
*100% burin-in test & hi-pot test
*Efficiency: 94% (min) at full load
*Over-voltage, over-current and over-power protection
*Output voltage with short circuit current protection
*Super high efficiency and reliability for industrial level use
*Application for 1U size
* with intelligent control ITPS ignition functions
*6-30V wide voltage input design(6-36V optional)
*Life Cycle:≥80K hours
*Support remote control mode and sleep mode
*Connectors: 20Pin for M/B,4pin for 12VCPU,SATA*1,4Pin for HDD*1，FDD*1
Product Details
| Connector |
|
|---|---|
| Parameters |
|
| Parameters |
|
| Accessories |
|
| Dimensions |
|
