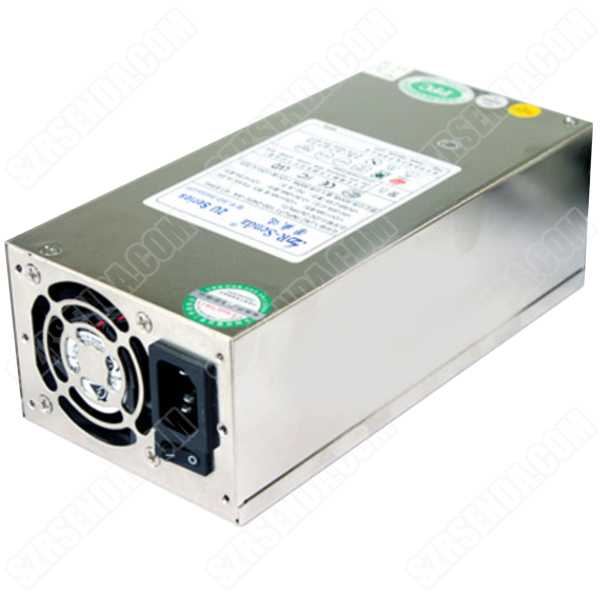

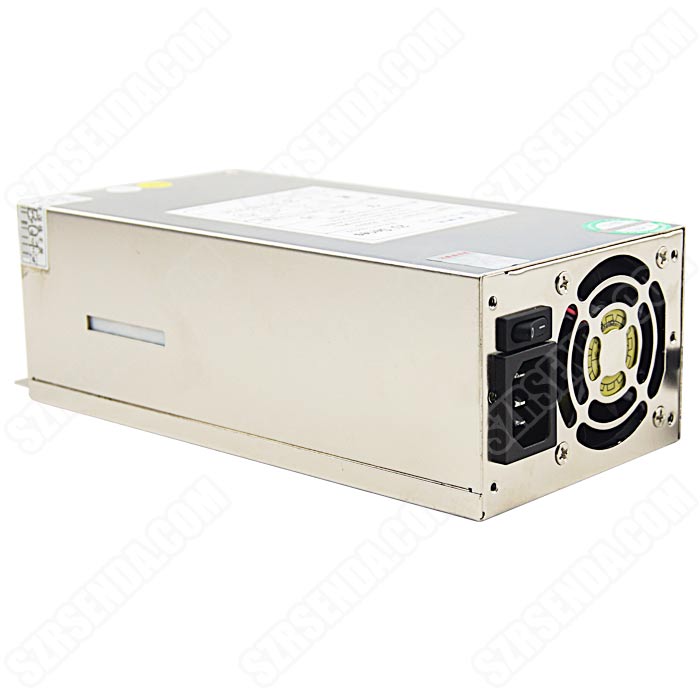

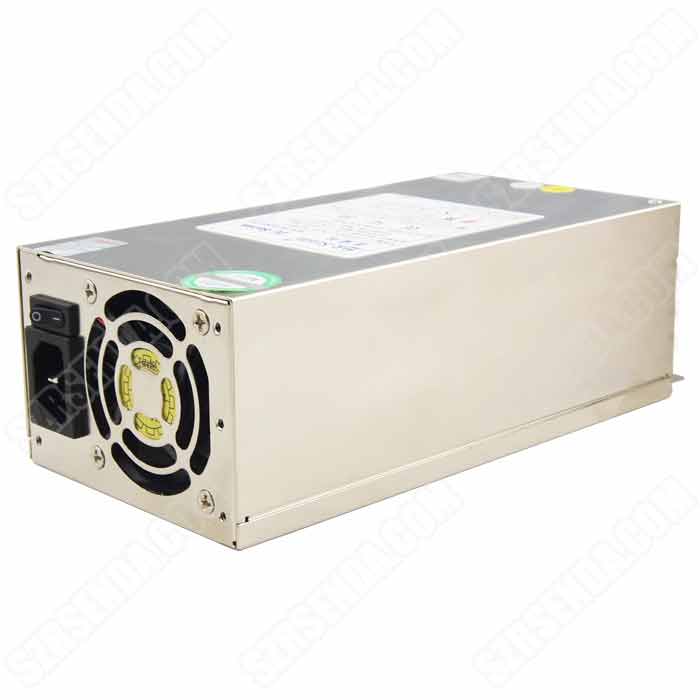

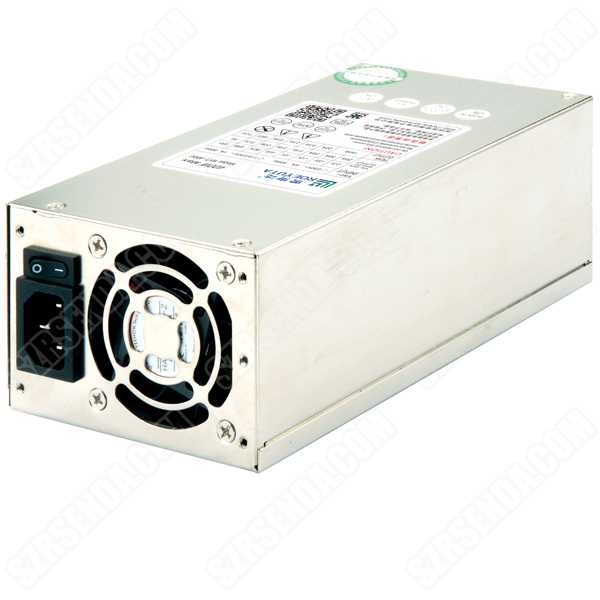

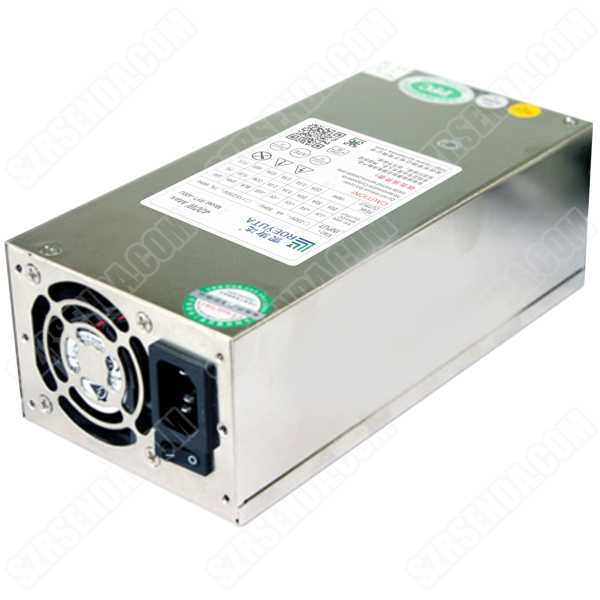

RYT-5002WAP

Hi, how can I help you?Chat Now!

  • Model Number：   RYT-5002WAP
  • Rated Power：   400W
  • Application：  The gateway computer industry, network, server, firewall
  • Fan Type：  6cm*2
  • Power Type：  Desktop / industrial computer
  • Input Voltage：  100-240VAC
  • High efficiency：  85%
  • Dimention：  200x100x70mm
  • Packaging Details：  10pcs/ctn
  • Carton Dimention：  555x400x185mm

10 Other Products in the same category

Product Features

• In accordance with 2U version 2.3
• Wide input voltage
• High efficiency
• Double circuit +12V group (12V1, 12V2)
• Low output ripple noise
• Each output with over voltage protection
• Each output voltage with short-circuit protection
• 2 built-in 6CM cooling fan
• 100% high temperature aging test (50℃)
• Life cycle: more than 100KH hours
• Suitable for: IDC, server, game machine, computer, industrial computer etc.

Product Details

Connector
    • Motherboard cable (20+4-Pin) x 1
    • CPU power Cable (4+4-Pin) x 1
    • 4-Pin peripheral cable x 7
    • SATA cable x 4
    • Floppy power adapter cable x 1

    • Motherboard Cable

      20+4-Pin*1

    • CPU power Cable

      4+4-Pin*1

    • HDD power Cable

      SATA*4

    • HDD power Cable

      4-Pin*4

    • HDD power Cable

      4-Pin*3\4-Pin*1

Parameters
  • AC Input: 100-240Vac，6A，47-63Hz
    DC Output:
    • +3.3V(Orange):
    • 28A
    • +5V(Red):
    • 35A
    • +12V1(Yellow):
    • 18A
    • +12V2(Yellow):
    • 14A
    • -12V(Blue):
    • 0.5A
    • +5VSB(Purple):
    • 2.5A
    • -5V(White):
    • -A
    Output power: Max Power：500W，Rated Power：400W
Parameters
    • PFC: Active
    • Protection function： OVP， OPP， SCP
    • Cooling system: SPEED: 6000RMP(+/-10%)
      6CM Fan*2
    • Noise: 30dB at 6000rpm
    • P.G signal: 100-500ms
    • Keep time: 17ms(min)
    • Conversion efficiency：75%
    • MTBF：100000 hours
    • Working temperature：0-50℃
Accessories
    • Packing list：
      Power Supply x1
      Power line x1
