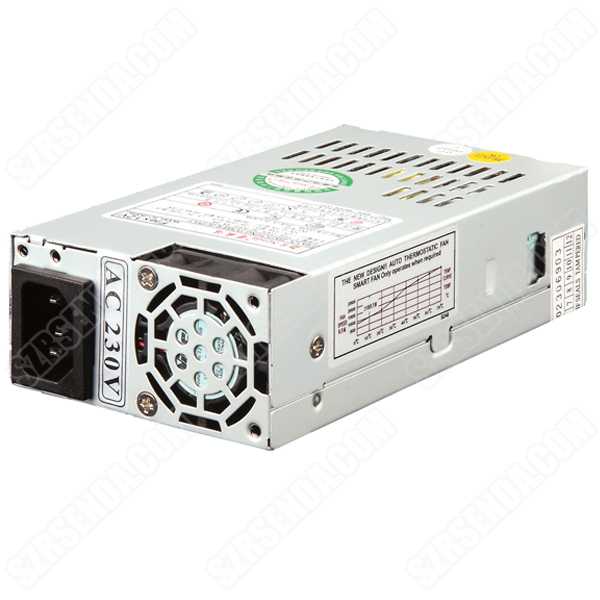

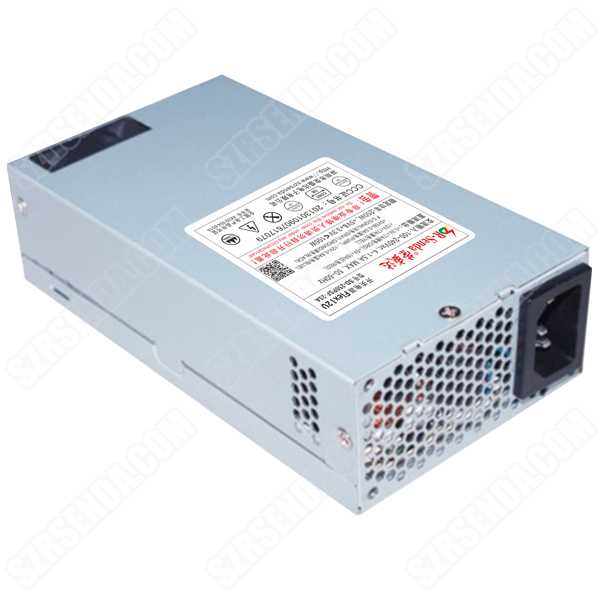

SD-250PSF-25A

Hi, how can I help you?Chat Now!

  • Model Number：   SD-250PSf-25A
  • Rated Power：   250W
  • Application：  Industrial PC, Checking machine ,All-in-one machine,etc.
  • Fan Type：  4cm
  • Power Factor：  Active PFC
  • Input Voltage：  100-240Vac
  • High efficiency：  85%
  • Dimention：  150x81.5x40mm
  • Packaging Details：  12pcs/ctn
  • Carton Dimention：  500x350x110mm

10 Other Products in the same category

Product Features

*Comply with FLEX 12V Ver2.31, Rated output power: 250W (350W Max)
* With 4cm fan
* Build in EMI
* Full range, with active PFC
* High efficiency
* Low ripple & noise
* Output over voltageprotection
* Short circuitprotection on all outputs
* 100% Hi-pot tested
* 100% burn-in underhigh ambient temperature(45°C)
* MTBF:80K hours at 25°C
*Connectors: 20+4Pin for M/B,4+4pin for 12VCPU,SATA*3,4Pin for HDD*2

Product Details

Connector
    • Motherboard cable (20+4-Pin) x 1
    • CPU power Cable (4+4-Pin) x 1
    • 4-Pin peripheral cable x 2
    • SATA cable x 3
    • Floppy power adapter cable x 1

    • Motherboard Cable

      20+4-Pin*1

    • CPU power Cable

      4+4-Pin*1

    • HDD power Cable

      SATA*3

    • HDD power Cable

      4-Pin*2\4-Pin*1

Parameters
  • AC Input: 100-240Vac，4A，47-63Hz
    DC Output:
    • +3.3V(Orange):
    • 17A
    • +5V(Red):
    • 18A
    • +12V1(Yellow):
    • 17A
    • -12V(Blue):
    • 0.8A
    • +5VSB(Purple):
    • 2.0A
    • -5V(White):
    • -A
    Output power: Max Power：300W，Rated Power：250W
Parameters
    • PFC: Active
    • Protection function： OVP， OPP， SCP
    • Cooling system: SPEED: 8000RMP(+/-10%)
      TEMP.AUTO ONTROL: 2200rpm at 41.7℃~7000rpm at 60.5℃
      4CM Fan
    • Noise: 20dB at 7000rpm
    • P.G signal: 100-500ms
    • Keep time: 17ms(min)
    • Conversion efficiency：80%
    • MTBF：100000 hours
    • Working temperature：0-50℃
Accessories
    • Packing list：
      Power Supply x1
      Power line x1

Dimensions
  • SD-250PSF-25A
